Infrared, Near Infrared & Raman SpectroscopyFT-IR Spectrometer
IROS 03 FTIR spectrometer
  • IROS 03 FTIR spectrometer
  • 제조사 :
    OSTEC
  • Catalog Number :
  • CAS Number :
견적문의
제품 특징 어플리케이션 동영상 카탈로그



IROS 03 FTIR spectrometer



 FTIR Spectrometer - IROS 03





저희 (주)비케이인스트루먼트는 OSTEC사의 공식대리점으로 FTIR, NIR, Raman Spectroscopy 등 다양한 제품을 취급 및 공급하고 있습니다.

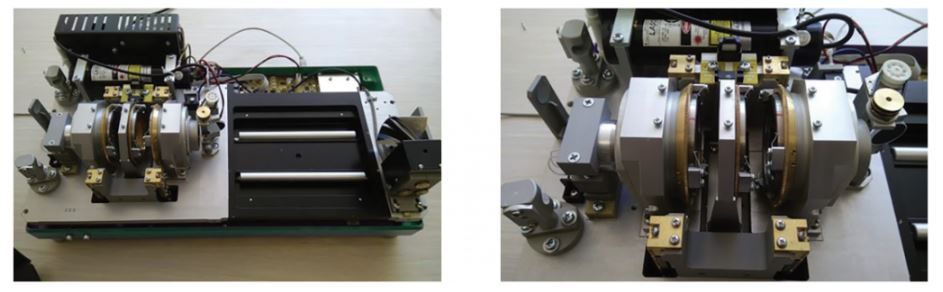

IROS FTIR spectrometers include a unique “double cat’s eye” interferometer patented in 1993.





  • Resistance to misalignment

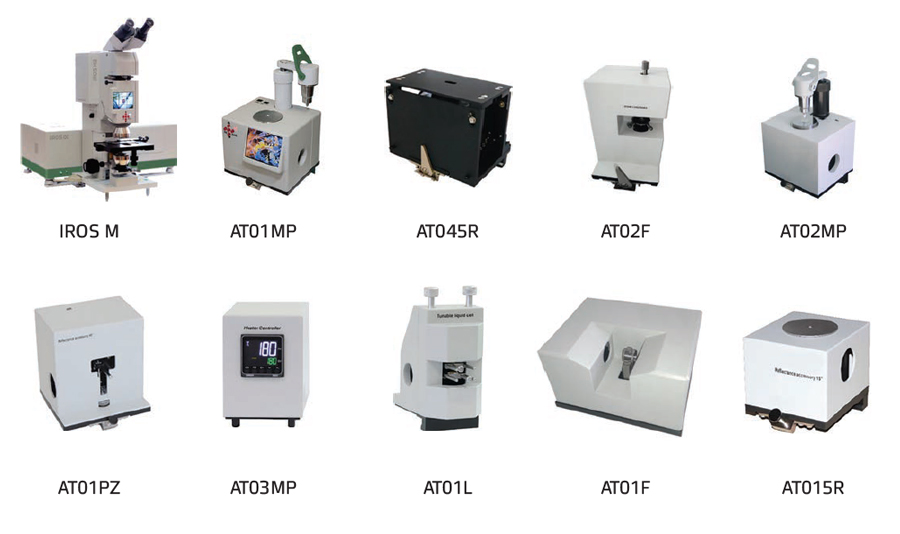

  • Great variety of own-produced attached modules



  • Control electronics with USB interface and self-test device



  • Fourier spectrometer weight (without attachments): 18 kg



  • Dimensions: 630 x 305 x 210 mm



  • External optical output for connecting devices installed outside the cuvette compartment


Advantages over classical Michelson interferometer:




    • Resistance to misalignment. There is no need to compensate thermal drifts and vibrations misalignments

    • High beamsplitter resolution

    • The angle of incidence for beam splitter is 90°. It allows avoiding polarization effects, angle of incidence for Michelson
      interferometers are 45° or 30°
