REACTORMAX

 High Temperature, High Pressure Horizontal ATR Accessory


(주)비케이인스트루먼트는  PIKE Technologie 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.






DESCRIPTION

The PIKE ReactorMAX is a fully automated, variable angle ATR accessory equipped with a temperature-controlled pressure vessel. The design employs a unique optical layout of the ATRMax (U.S. patent 5,105,196), which enables samples to be analyzed over a range of incident angles.



The PIKE ReactorMAX is a fully automated, variable angle ATR accessory equipped with a temperature-controlled pressure vessel. The design employs a unique optical layout of the ATRMax (U.S. patent 5,105,196), which enables samples to be analyzed over a range of incident angles. Variable angle of incidence provides experimental control over the depth of penetration of the IR beam into the sample and the number of beam reflections in the ATR crystal. Integrated reaction vessel may be pressurized up to 55 bar and heated to 215 C. Optional stirring is available.



FEATURES

· Selectable angle of incidence from 25 to 65 degrees
· 0.5 to 10 micron depth of penetration – dependent on crystal material, angle of incidence, sample’s refractive index and wavelength of IR beam
– ideal for depth profiling studies
· 3 to 12 reflections of IR beam – dependent upon angle of incidence – ideal for optimizing ATR sampling methods
· Variable temperature control to 215 °C
· Sealed sample chamber for pressures to 55 bar

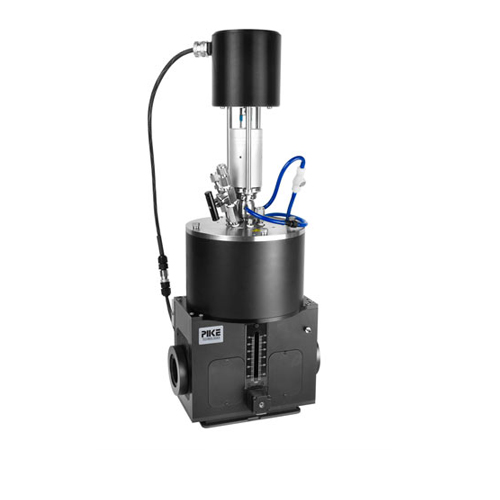

· Optional in chamber stirrer (shown above)
· Automated incidence angle control and TempPRO™ software for high-precision experiments
