Infrared, Near Infrared & Raman SpectroscopyFT-IR + XRF Sample Preparation Equipment
Manual Hydraulic Press | FTIR + XRF pellet press
  • Hydraulic Press
  • 제조사 :
    Specac
  • Catalog Number :
    문의
  • CAS Number :

Manual Hydraulic Press | FTIR + XRF pellet press

고품질 FTIR 악세사리 및 FTIR/XRF 샘플링!

(주)비케이인스트루먼트는 영국 Specac 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.

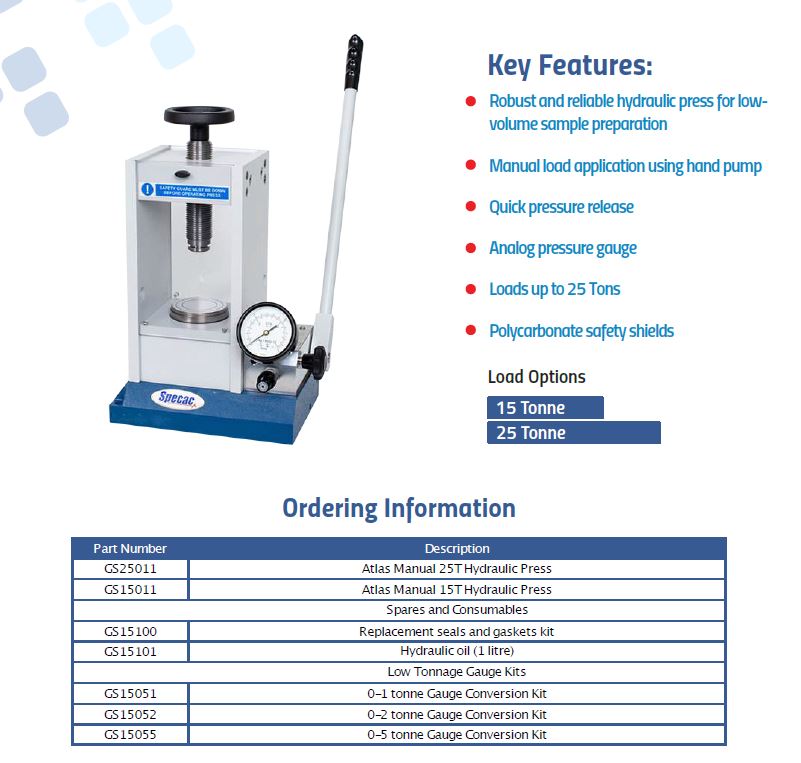

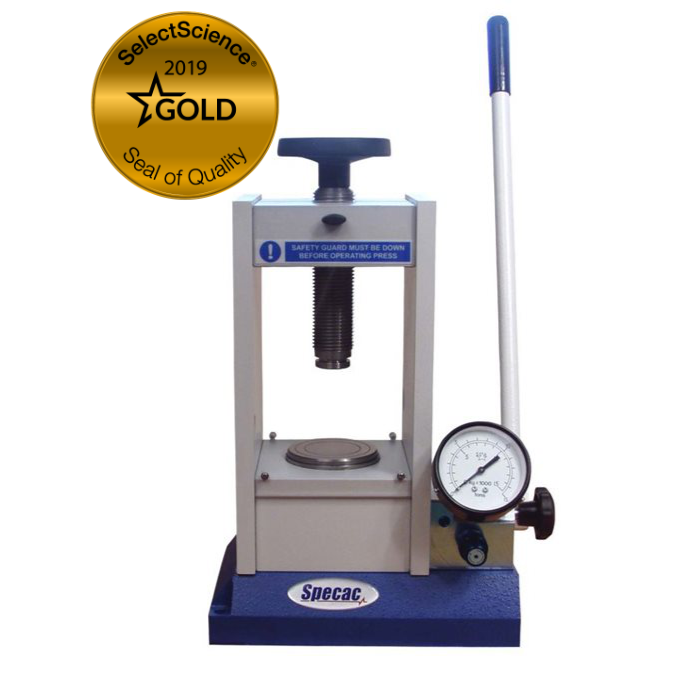

The Atlas™ Manual Hydraulic press is ideal for simple and low-cost laboratory sample preparation for XRF and can be used with our standard pellet dies.

Load is applied by manually pumping the pressure system with a hand lever. The press's simple and robust frame ensures reliable operation over many years, and is readily convertible to other uses.






Features

· Award-winning pellet press
· 15 ton and 25 ton configurations
· Polycarbonate safety guards
· Adjustable upper bolster
· Adjustable pressure control valve
· Vacuum ports
· Pressure release valve
· Low pressure conversion gauges
· Ideal for FTIR, KBr and XRF sample preparation



General Specifications:



· Displayed Load Range   : 15T: 0-15 Tonnes,  25T: 0-25 Tonnes

· Footprint (W xD) :   310mm x 190mm

· Height (at handle) :  Max.610mm

· Workingarea dimensions (W xH) : 134mm x 141mm

· Weight : 50kg
