(주)비케이인스트루먼트는 독일 Elma Ultrasonic사의 공식대리점으로 합리적인 가격에 다양한 제품을 보유 및 공급하고 있습니다.

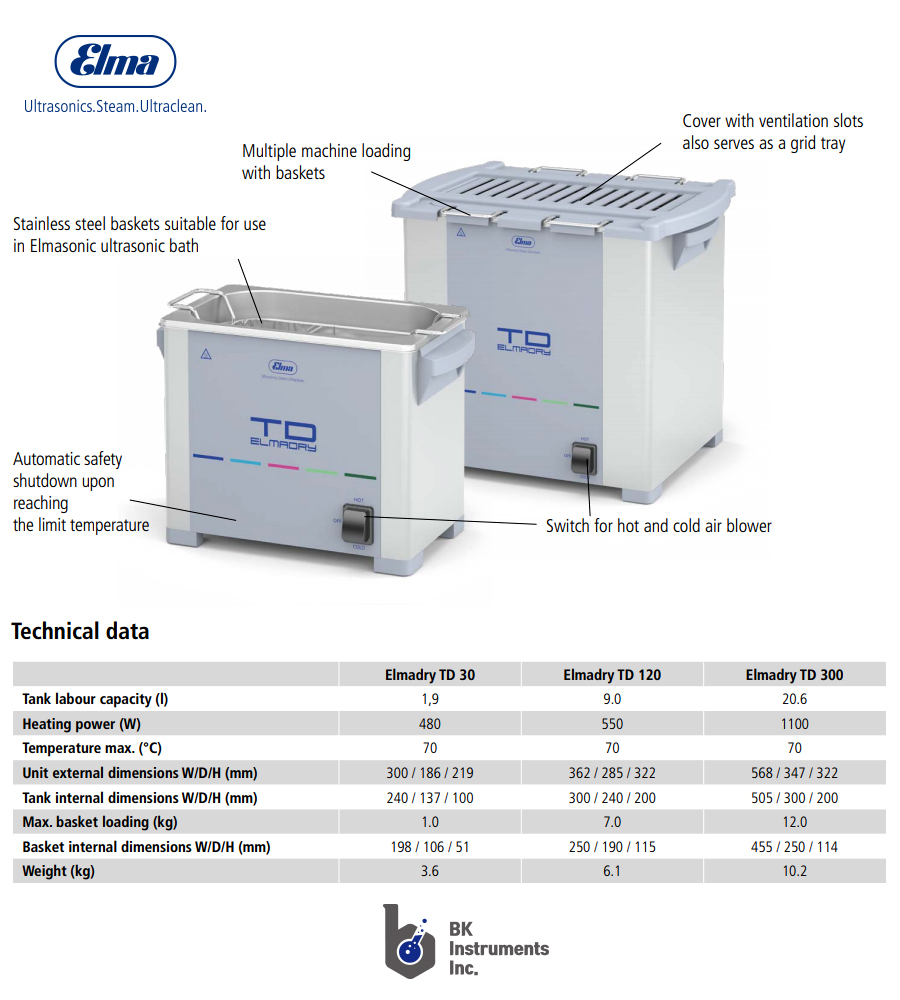

Warm air and cold air - drying units for small parts
· Simultaneous hot air (70°C) and cold air blower for drying sensitive parts
· High user safety through safety shutdown upon reaching the limit temperature
· 3 unit sizes for basket sizes 30, 120 and 300
· Simple and fast operation
Elmadry TD drying units are available in 3 sizes (30, 120 and 300) and designed for use in production, workshop and service. After ultrasonic cleaning, the parts are first rinsed in the basket with municipal water and then conveniently placed in the Elmadry TD drying unit.
Fitted with cold and hot air blower (70 °C), sensitive parts can also be dried gently. In cold air operation, the parts to be dried can also be cooled quickly. The hot air function is activated while the cover is on. The cover has ventilation slots, ensuring that maximum air turbulence is produced and the moist air is conducted to the outside. At the same time, the cover reduces energy consumption.
The dust filter on the underside is replaceable and prevents re-soiling of the cleaned parts by the dust in the room air.
Elmadry TD units are very user-safe thanks to the safety shutdown upon reaching the limit temperature
Equipped with an ultrasonic frequency of 37 kHz, the functions Sweep and Degas and much more, Elmasonic S devices are ready for different tasks and applications in various business sectors.
