XRF Pellet Dies | Automatic Eject Pellet Die

고품질 FTIR 악세사리 및 FTIR/XRF 샘플링!

(주)비케이인스트루먼트는 영국 Specac 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.

XRF Pellets – high throughput, high quality

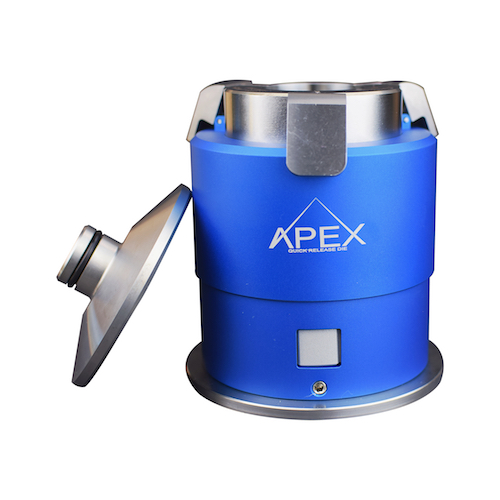

The Apex® Quick Release die makes XRF sample pellet preparation faster and more simple than ever before.

The patented automatic pellet eject sleeve enables the release of the finished XRF pellet, without the requirement to reset the die at an inverted position, at the middle point of the sample pressing cycle.



· Following the compression of the sample, the release of the pellet results in the ejector tabs swivelling  and capturing the ejection sleeve in a release position.
· Re-applying the load enables the completed XRF sample pellet to be pushed clear of the die body and released for user collection.



When used in conjunction with the Specac Atlas™ Autotouch automatic Hydraulic Press, the two  steps can be programmed into the laboratory press to automatically and seamlessly take place in sequence, without manual by the operator.



The Apex® Die improves consistency by reducing space to human error, and increases throughput by speeding up pellet preparation. Less time is spent dissembling dies and awkwardly removing pellets. More time can be spent on analysis and increasing the quantity of pellets prepared.



Features

· 32mm and 40mm pellet sizes
· Ejects pellet without awkward user handling
· Works seamlessly with Autotouch automatic press cycle
· Premium build material for durability
· Simple design for easy us
