Constant Thickness Film Maker

고품질 FTIR 악세사리 및 FTIR/XRF 샘플링!

(주)비케이인스트루먼트는 영국 Specac 사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다

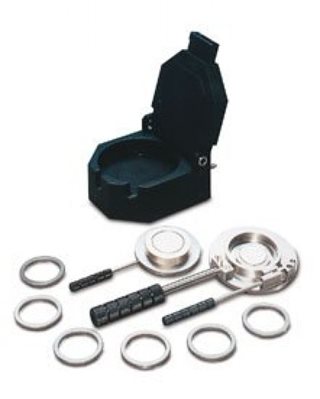

The Constant Thickness Film-Maker accessory is ideal for the preparation of reproducible thickness polymer films. The films produced are 29mm in diameter and can be varied in thickness by using a set spacing ring.

The accessory is designed to be used with the Atlas Heated Platens which allows for a maximum temperature of 300°C and is compatible with Specac's range of bench-top presses.

Constant Thickness Film Kit I

The Constant Film Maker Kit I provides everything required to turn a Specac Press into a Film Maker, to create thin films of sample materials using temperatures of up to 300°C.

The Constant Thickness Film Maker Accessory is designed to be used with the Heated Platens to produce thin films for analysis from samples using a temperature range of ambient to 300°C.

Constant Thickness Film Kit II

The Constant Thickness Film Maker Kit II provides everything required to produce thin films from sample materials at temperatures of up to 300°C.

The Constant Thickness Film Maker Accessory is designed to be used with the Heated Platens to produce thin films for analysis from samples using a temperature range of ambient to 300°C.

Features

· Up to 300°C operation
· 15 minute cycle time typical
· 4 Ton load limit
· 0.015, 0.025, 0.05, 0.1, 0.25 and 0.50mm films of 29mm diameter
· Easy film release
· Operates with Heated Platens
