Nuclear Magnetic ResonanceNMR Consumables (Wilmad)
Wilmad 5mm O.D. Thin Walled Economy NMR Tubes
  • 5mm O.D. Thin Walled Economy NMR Tubes
  • 제조사 :
    Wilmad-LabGlass
  • Catalog Number :
    문의
  • CAS Number :

Wilmad Economy NMR Tubes

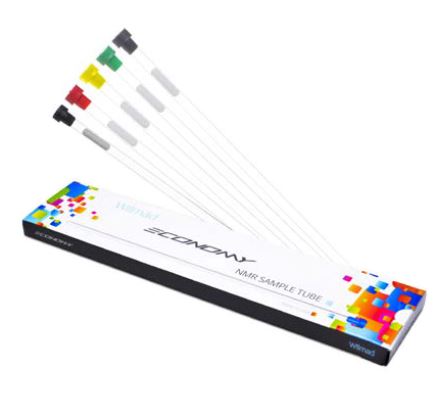

 Wilmad 5mm O.D. Thin Walled Economy NMR Tubes



Wilmad - LabGlass 는 80년의 역사를 가진, NMR Tube처음 제조하고 발명한 회사입니다.
Frequency(MHz Rating)의 기준을 정격한 미국 브랜드로, 튜브의 직경오차가 작아 정밀성이 매우 뛰어납니다.

(주)비케이인스트루먼트는 미국 Wilmad- LabGlass사의 공식대리점으로 보다 합리적인 가격에 다양한 제품을 취급하고 있습니다.






Designed for routine use in all NMR spectrometers, Wilmad Economy NMR Tubes are guaranteed to fit tightly in any spinner turbine and have zero NMR background.





• Best O.D. tolerance in the industry and a 30% thicker wall than any competitors’ product

• Manufactured in an ISO 9001:2015 USA facility

• Camber and concentricity values listed are the Total Indicator Reading (TIR)

• 100% visual and physical inspection ensures quality, including physical dimensions and surface defects

• Made from borosilicate glass; meets ASTM E438 Type 1 Class B standard, recognized as N51A

• Includes disposable cap

• Recommended only for experiments with small organic molecules (Molecular Weight ~500) at ambient temperatures only

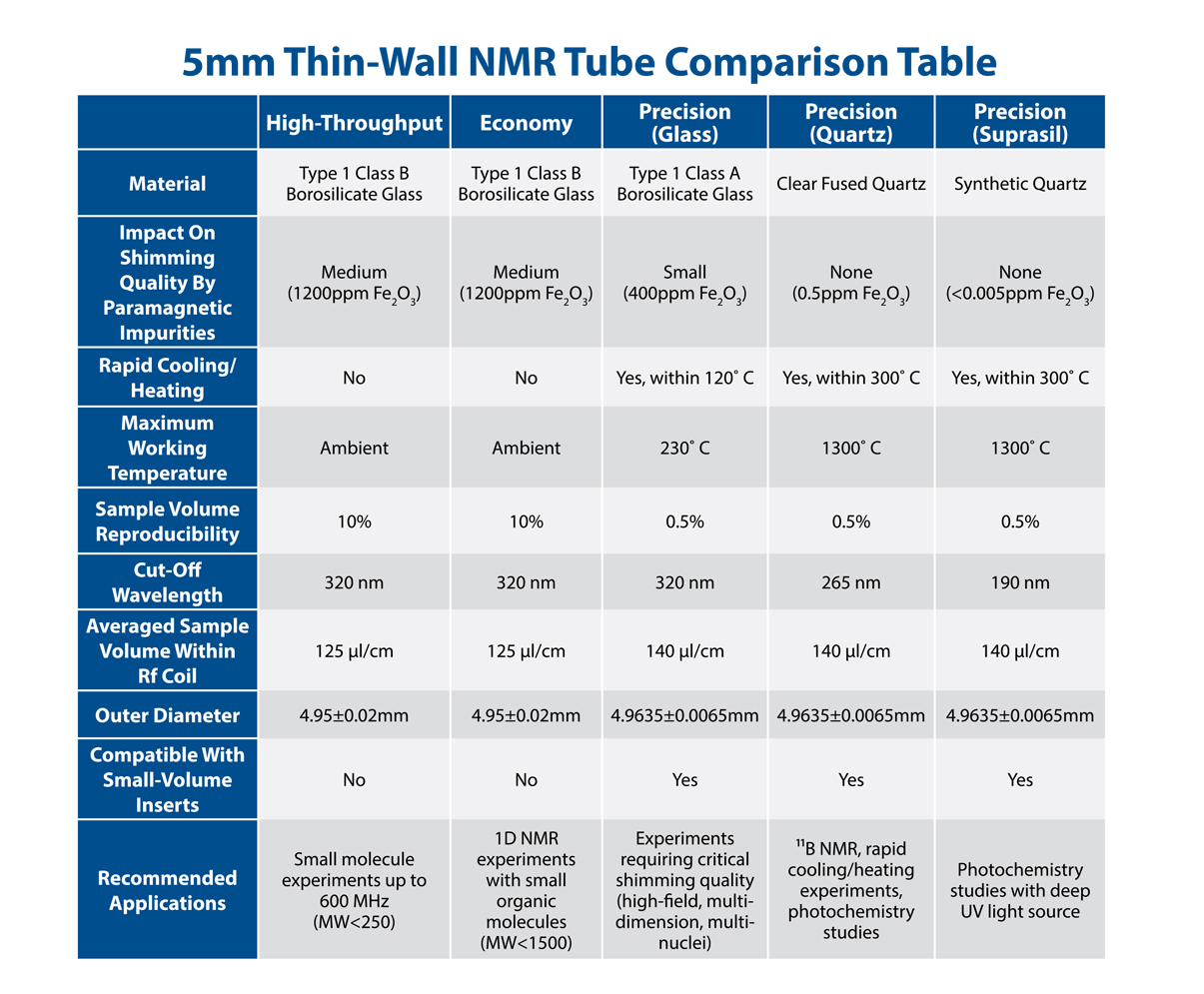

• Cooling/heating of these tubes may lead to breakage; for NMR experiments that involve cooling, heating, biological sample, multi-dimension, multi-nuclei or DNP techniques, refer to Wilmad Precision NMR Tubes





Note: Caps are not recommended for use with samples dissolved in chloroform-d or acetone-d₆.
