악세사리Fiber Probes
NIRaman Combi Probes
  • art photonics NIRaman Combi Probes
  • 제조사 :
    art photonics
  • Catalog Number :
    AP12242
  • CAS Number :
견적문의
제품 특징 어플리케이션 동영상 카탈로그

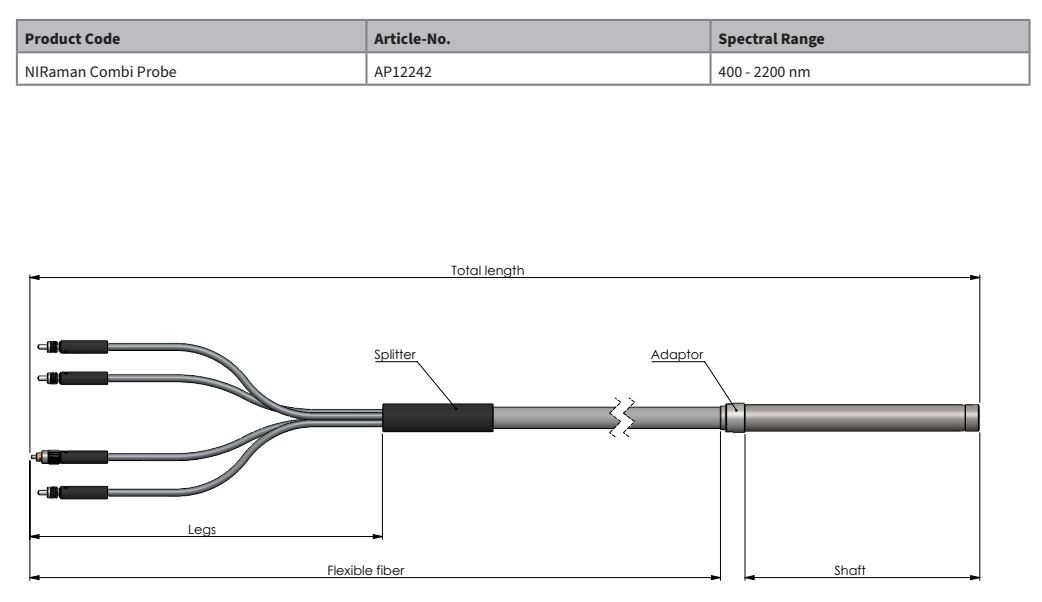

Probe Shaft

Sealing Material : Glue EPOTEK 353 ND

Window : Sapphire

Probe Shaft : OD = 19 + 0/-0.1 mm, L = 170 mm

Shaft Material : Stainless Steel 316 L

Total Length : 3 ± 0.05 m

Protection tubing : Liquid Tight Protection (LTP)

Temperature : 0 - + 150 °C

Pressure : 0 - 10 Bar


NIR Diffuse Reflectance Channel

Illumination Bundle : 19 x NIR400/440, NA = 0.22 ± 0.02

Detection Fiber : 1 x NIR400/440, NA = 0.22 ± 0.02

Terminations : 20 x SMA 905



Raman Channel

Laser Wavelength : 785 nm

Excitation Fiber : 1 x NIR105/125, NA = 0.22 ± 0.02

Detection Fiber : 1 x NIR200/220, NA = 0.22 ± 0.02

Terminations : FC/PC, 20 x SMA905
