SpectroscopyFT-IR & Raman Spectrometer
IROS 05 FTIR spectrometer
  • 제조사 :
  • Catalog Number :
  • CAS Number :

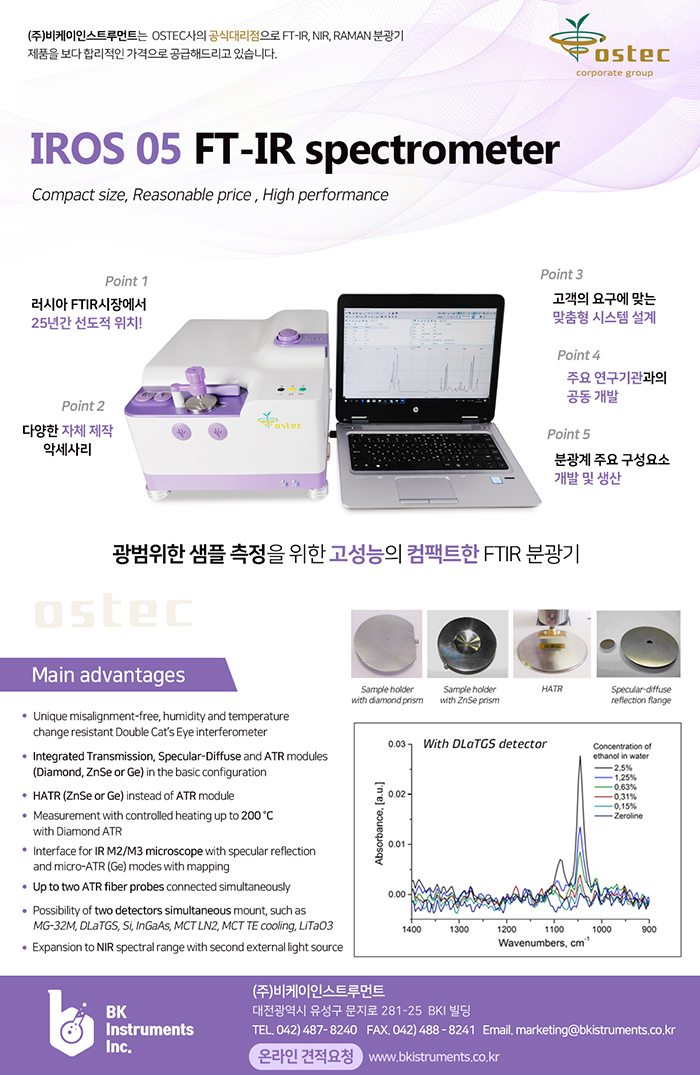

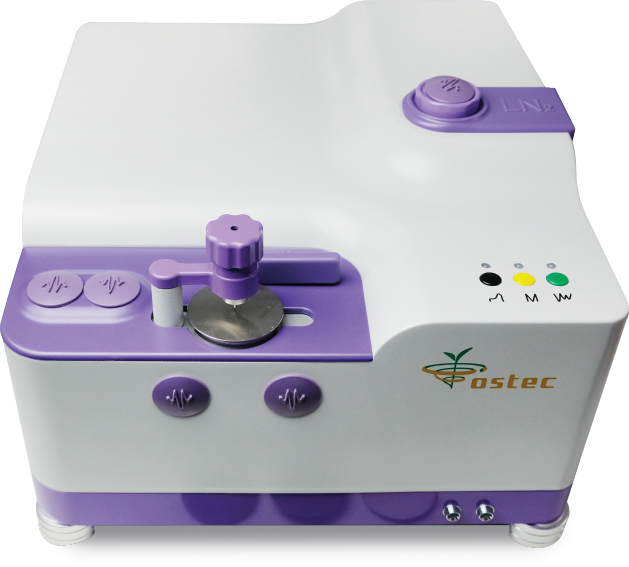

IROS 05 FTIR spectrometer


 FTIR Spectrometer - IROS 05


IROS 05 FTIR 분광기는 실험실에서 Pilot Plant에 이르기까지 가장 까다로운 환경에서 광범위한 시료 측정 기술을 제공하도록 설계되었습니다.

IROS 05 Spectrometer는 컴팩트 한 크기, 다양한 액세서리 세트 및 고성능의 합리적인 가격대로 만나 보실 수 있습니다.

학술 및 산업 응용 분야 등 대부분의 연구에 적합한 FTIR 분광기 입니다.



저희 (주)비케이인스트루먼트는 OSTEC사의 공식대리점으로 FTIR, NIR, Raman Spectroscopy 등 다양한 제품을 취급 및 공급하고 있습니다.








1. Main Features:

  • · A wide array of functions due to various attached modules and detectors
  • · The capability of additional external devices connection for IR spectrum registration
  • · Stability to temperature fluctuation and vibration due to unique patented interferometer design
  • · Moisture durability because of ZnSe optics
  • · Compact and light-weight

2. Key advantages:


  • · Integrated ATR module is equipped with ZnSe, Ge or diamond crystals (including registration with controlled heating up to 200 °C)
  • · Transmission, specular-diffuse, and ATR
  • · Connection to IROS M2 or M3 IR microscope with specular reflection and micro-ATR (Ge) modes of spectra registration
  • · Ports for external devices, such as multi-pass gas cell or IR telescope
  • · Up to two ATR fiber probes connected simultaneously
  • · Possibility of simultaneous operation with two detectors, such as MG-32, DLaTGS, Si, InGaAs, MCT LN2, MCT TE cooling, LiTaO3
  • · Expansion to NIR spectral range with a second external light source

3. Optical attached modules for IR spectrum registration:

 • Transmission and reflection,
 • ATR with ZnSe, Ge and Diamond Prisms (including registration with controlled heating up to 200 °C).

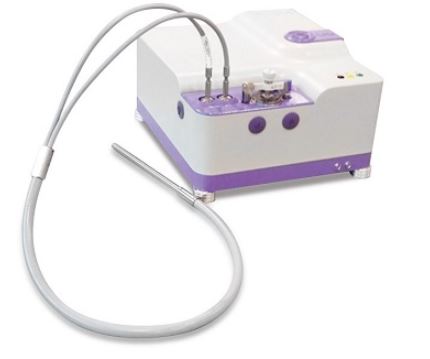

IROS 05 with Attenuated Total Reflection (ATR) probes designed for harsh application conditions

The spectrometer can be equipped with an adapter for fiber optic  probes with a universal connector (SMA) and various high-quality fiber optic probes.
Immersion fiber optic probes are suitable for monitoring processes in laboratory-scale plants as well as in commercial reactors. They allow you to increase the accuracy of chemical processes analysis in real time and reduce the cost of process control.
Fiber optic ATR probed can be equipped with various tips:
    • · Diamond,
    • · ZnSe,
    • · Si,
    • · ZrO2
