Nuclear Magnetic ResonanceBenchtop NMR Spectrometer

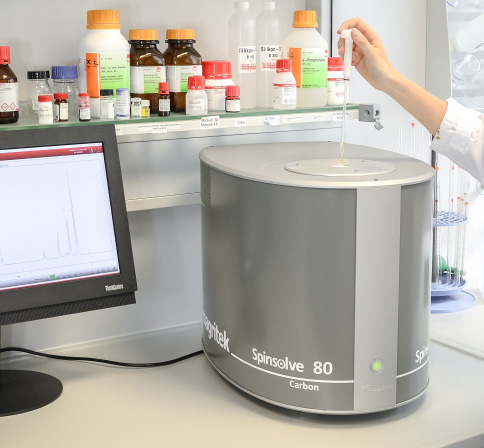

Spinsolve 80 MHz benchtop NMR
  • Spinsolve 80 MHz benchtop NMR
  • 제조사 :
    Magritek
  • Catalog Number :
  • CAS Number :
견적문의
제품 특징 어플리케이션 동영상 카탈로그

Benchtop NMR Spectrometer

 Spinisolve 80 MHz benchtop NMR

화학교육, 합성화학 및 구조설명, 정량, 순도 측정, 온라인 반응 모니터링 응용 분야를 위한 고해상도의 Spinsolve 소형 NMR 분광계 !


이제 실험실에서 직접 NMR 을 측정하세요!


(주)비케이인스트루먼트는 Magritek사의 독점대리점으로 Benchtop NMR Spectrometer 장비를 보다 합리적인 가격으로 제공합니다!



저희 (주)비케이인스트루먼트에서 보유하고 있는 Spinsolve 데모 장비를 통해 NMR Sample 측정도 가능합니다.

샘플 측정과 관련하여 온라인 문의 게시판으로 문의 주시면 자세하게 안내 도와 드리겠습니다!



80 MHz field strength delivers unrivaled power to your laboratory benchtop.

Magritek is proud to announce the newest innovation in our Spinsolve family, the 80 MHz Spinsolve 80.

Spinsolve 80 maintains the highest performance and quality standards you've come to expect from Spinsolve,

but now with an unparalleled 80 MHz magnet at its core.


· Specifications

• Nuclei: 1H, 19F, 13C (Other Nuclei Available)
• Operating frequency: 80 MHz (1H)
• 1H 50% Linewidth: < 0.5 Hz
• 1H 0.55% Linewidth: < 20 Hz
• 1H Sensitivity (dual channel): >200:1 for 1% Ethyl Benzene
• Operating Temperature Range: 20° C to 25° C
(68° F to 77° F)
• Dimensions: 58 x 43 x 40 cm (23” x 17” x 16”)
• Weight: 72.5 kg (160 lb)
• Stray Field: < 2 G all around system
• Voltage Requirement: 100-240 VAC, 50/60 Hz




Spinsolve 80 best-in-class features include

• Highest field strength (80 MHz)
• Largest chemical shift spread
• Highest sensitivity
• Superb Resolution (0.5 Hz/20 Hz)
• Multi-nuclear probe
• 5 mm standard NMR tubes
• No sample spinning required
• Advanced methods like COSY, HSQC, HMBC, etc.
• Benchtop size and weight
• No cryogens



Spinsolve 80 is capable of performing even the most advanced multi-nuclear methods with just a single click.

Experiments enabled include COSY, DEPT, HSQC-ME, and HMBC.

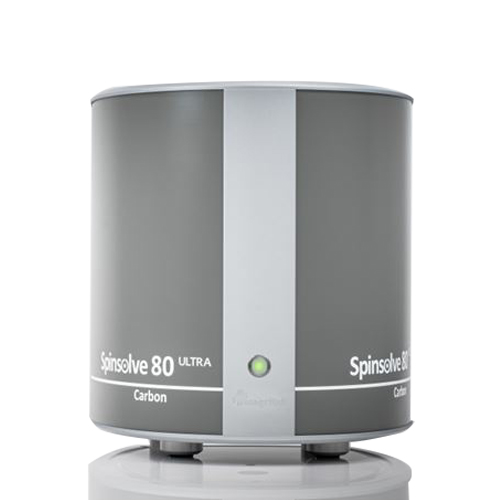

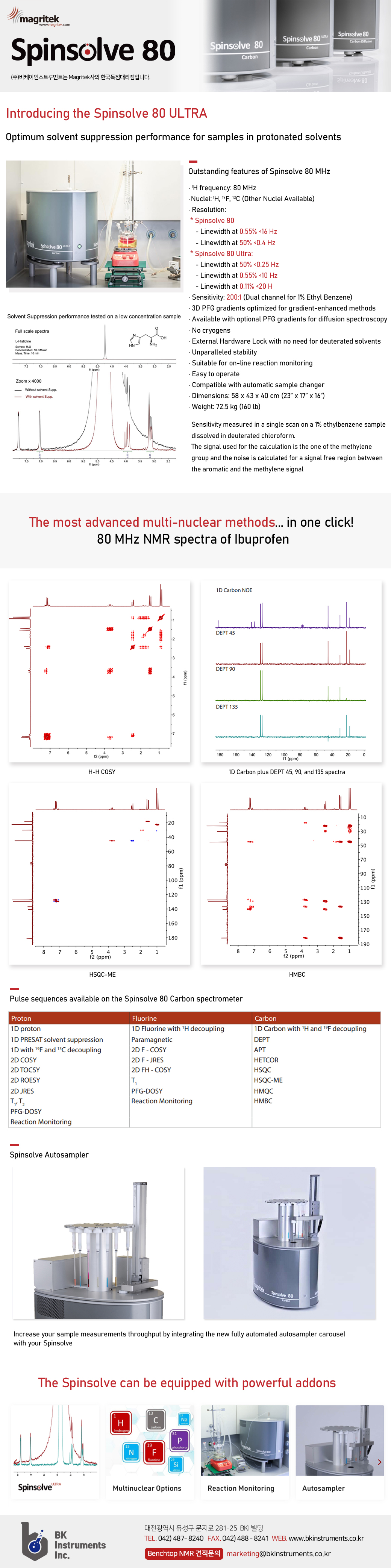

Introducing the Spinsolve 80 ULTRA

Optimum solvent suppression performance for samples in protonated solvents
