VISIONlite™ Spectrophotometer Software

 For Visible and UV-Visible spectrophotometers

저희 (주)비케이인스트루먼트는 Thermo Fisher Scientific의 UV-Vis 공식 대리점으로 Thermo Fisher 미국본사의 자격을 보유한 전문 엔지니어의 Service와 Training을 제공합니다.

Thermo Scientific™ VISIONlite™ 5 Software enhances the capabilities of our stand-alone Visible and UV-Visible spectrophotometers. The software enables you use your spectrophotometer to its fullest potential, displaying and reporting experimental and analytical results with ease.

 Thermo Scientific™ VISIONlite™ ColorCalc software is a powerful stand-alone software package that adds the ability to perform numerous color calculations for a variety of applications. The software records the required transmission or reflectance spectrum and automatically performs calculations using the recorded data.



VISIONlite Software enhancements include:

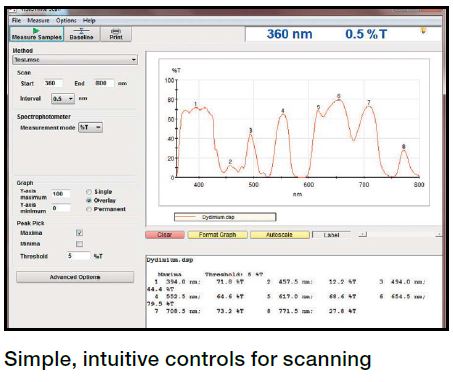

Scan:

·         Peak pick to identify and label wavelength peaks or valleys

·         Overlay spectra for visual comparison

·         Import, save or export data in native or CSV format for easy archiving and reporting

·         Auto scaling of data plus simple zoom controls for detailed examination of spectra

Rate:  For SPECTRONIC 200 and GENESYS 30, measure multi-cell kinetics in parallel or serial mode

·         Automatic enzyme activity calculation

·         Automatic data storage plus import or export your data in CSV format

·         Measure up to 100 samples in a single data set

Fixed:

• Measure at one or multiple wavelengths
• Apply factors and equations to your data to generate results directly
• Addition, subtraction, ratio and baseline correction options
• Display results with units from a menu or define your own custom unit
• Run standard bio-tests using the preprogrammed protein and DNA methods
•  Save or print results as a report, or export data in CSV format to use in a template

Quant :   More standards and non-linear curve fitting options offer greater confidence and accuracy than can be accomplished under local control on Thermo Scientific SPECTRONIC 200 and GENESYS 30 Spectrophotometers

·         Choose from 11 pre-programmed reporting units or define your own

·         Apply dilution factors in software to allow you to keep data for all your samples in range without doing off-line calculations

·         Automatic data saving for peace of mind

·         Save or print your results as a report, or export data in CSV format to use in your own template

Performance Verification:

·         Select from the range of available Performance Verification tests that is customized to your instrument’s specifications

·         VISIONlite 5 will prompt you to present the correct reference materials in order, and then print a complete report for your compliance file

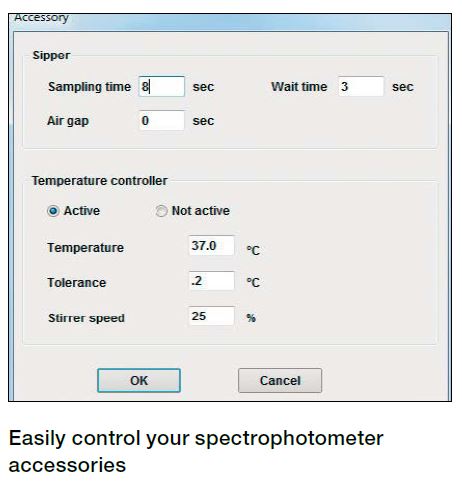

Accessory control:

Whether your experiment requires automation to enhance sample throughput or thermostatting to preserve precious biological samples, VISIONlite 5 provides full control of the required accessories.

VISIONlite ColocCalc Software:

·         Full spectrum color scales and data reporting:  Record the required spectra in transmittance or reflectance and calculates color values

·         Application-specific color series: Pt-Co/APHA, whiteness, EP color, wine, etc.

·         Sample thickness transformation allows for the correction for actual sample thickness and front surface reflection effects based upon a single value, the material's refractive index, or a full surface reflectance spectrum

Mathematical calculations and customization

VISIONlite ColorCalc Software has the ability to perform configurable or custom calculations and to store and present your custom-configured methods on the calculations menu.
